An upgrade to Ubiquiti

I’ve been _extremely_ impressed with the quality of Engenius‘ products, most specifically the EOC-2610. For the 2 years that I’ve had my two units in service, I’ve had very little issue with them.

Recently my workplace ordered a batch of Ubiquiti products from DoubleRadius. Ubiquiti is loved by the WISP world, and (mostly) utilize Atheros boards – just as the Engenius products do. Both also have stock firmware that’s also based off OpenWRT. Being inspired, I purchased some equipment myself.

Part of the reason the Ubiquiti gear seems to be more popular is their excellent support and web forum. Engenius is notoriously difficult to get any answers out of. I’ve still yet to get a copy of their firmware source required by the GPL, and I gave up long ago trying to get anywhere. Luckily, the few questions I did have were answered by simply expirementing.

This weekend I began the migration to Ubiquiti. My first rollout involves a Rocket M2 and a 120 degree sector antenna. For the past few weeks I’ve been working on adding a more recent version of the excellent CoovaChilli to the device. I have located a version of the CoovaAP firmware that runs natively on a Rocket M2, however it lacked a number of features (non-Chilli related) that I was hoping for. After much searching, I’ve been able to locate a 5.3 SDK (which features AirControl and the built-in spectrum analyzer).

AirView
The AirView built in spectrum analyzer

As I mentioned, it took quite a bit of searching to obtain the SDK. According to Kevin Perry at Ubiquiti  “We’ve had to temporarily remove the SDKs from our site to comply with US export control regulations. Once approved, we will be able to continue providing SDKs. ”  I’ve not heard anything new, and that correspondence is from September of 2011.

Of course, the Internet is a not only a compendium of 140-word-or-less Tweets about what someone just ate for dinner, it’s also a giant archive of the past. And with a bit of searching, I came across the SDK still hosted (albeit hidden) on Ubiquiti’s site.

Unfortunately the latest SDK is 5.5, and not 5.3. I’ve not had luck locating it (and it does contain the patch for the SkyNet worm), so I’m working off 5.3 for the time being. I’ve locked down access to the web interface to prevent infection from the worm.

CoovaLogo2_0
The CoovaChilli Captive Portal

With the SDK in tow, I began the work of inserting CoovaChilli into the system. Ubiquiti ensures important services stay running by having them spawned (and respawned if needed) via inittab. The stock inittab on the system is basic, handling only login and a couple of runlevel items. Prior to /sbin/init starting, the system runs a bash script /init. This in turn handles filesystem mounts, makes a handful of device nodes, copies a number of files into place, partially configures sysinit, and sets the timezone. It also calls ubntconf which gleans information from the nvram variables, prior to executing the traditional /sbin/init.

ubntconf is a closed source application, although it’s pretty easy to glean most of it’s operations by simply running strings on it (It is an ELF not a script). Depending upon nvram variables that are set, different scripts are dropped into /etc/sysinit. Additionally, items are added to /etc/inittab like this:

null::respawn:/bin/pppd eth0
null::respawn:/bin/lighttpd -D -f /etc/lighttpd.conf
null::respawn:/bin/dropbear -F -d /etc/persistent/dropbear_dss_host_key -r /etc/
persistent/dropbear_rsa_host_key -p 22

Each of these entries will respawn the corresponding service should it crash. Using their system as a model, I created my own config creator “chilliconf” to add entries to inittab for the chilli daemon, in addition to the necessary iptables rules in /etc/sysinit, and a few modifications to their use of dnsmasq (I wanted to syslog DNS queries offsite). When I later added NProbe to my firmware, I also used my chilliconf configurator to add it to the inittab.

My chilliconf configurator, like ubntconf, is called from the /init script.

One thing of note – any daemon listed in the inittab file needs to actually run in the foreground (so calling the process a daemon isn’t entirely accurate). This is for the obvious reason that the initiating process fork()s then exits – so inittab will continually respawn the service until you run out of resources.

No Strings Attached
All original functionality is still there. It's a like a cyborg version of itself.

I used the 3.6SDK version of CoovaAP as a model for my web interface. Adding a tab was fairly easy – the web interface is maintained as the ubnt-web package in the SDK. Most of the web CGI is PHP/FI (with a couple of functions added to PHP to facilitate saving configs and reading values). The code is extremely readable, and easy to figure out.

When you save your settings in the Ubiquiti web interface, you’re presented with a blue message bar asking if you’d like to test or apply your settings. In either case, you’ll be disconnected for a moment while the system reconfigures itself. This appears to be done via a call to the original /init script. The blue bar is a bit of a problem when adding a new tab to the menu.

The background image for the blue bar (msg.png) is originally  745 pixels, and the screen width is set to 790 pixels. With an added tab, the screen width becomes 866 pixels. Using GIMP I resized this image to 821 pixels.

The Blue Message Menu
Resize the blue background to fit.
  • Originally it was 745, with the original screen width of 790.
    • 790-745 = 45.
    • 866-45 = 821 — our newly resized image.

The web interface went through a few iterations before I had all the options I presently needed. CoovaChilli’s dnsdomainlocal option is problematic – causing any DNS query that returns an NXDOMAIN error for an A record to cause a redirect to the portal. Unfortunately the portal (from my experience) doesn’t properly track in this instance if the MAC associated with the request is authenticated – and redirects the user back to the UAMSERVER with the “res=notyet” variable. This means the user is prompted with a login screen unnecessarily.

In other words, visit “adfasjzc9vdsa0f9jdsaf.com”, and you’re presented with a login screen even after you’re logged in.  Adding the option to disable dnsdomainlocal fixes this problem.

The CoovaChilli Tab
The CoovaChili tab (with NProbe)

By default, I have the “dhcpradius” option enabled. With this feature, when a DHCP request is received by the CoovaChilli server, it forwards the MAC address to the radius server (as both the username and password) for authentication. If it doesn’t authenticate, the system redirects the user back to the UAMServer for a captive portal login.

The North Facing Access Point
Broadcasting throught the stratosphere

For the time being, the system is a bit overkill, but the options it presents for the future are many. CoovaChilli can rate-limit individual users based on login or MAC address. This alone opens the door for a pay-for-bandwidth model. If a user is found to be filesharing (legal or not) or otherwise consuming an inordinate amount of bandwidth, they can be easily ratelimited.

I still have a few minor items to add to the firmware (including the ability to pull RSSI information per client), but in the meantime it’s been fun working with the Rocket M2. The access point is now being tested in the neighborhood.

Midtown Wifi – the internals.

In the next few days, I’ll be upgrading my north facing access point from Engenius to Ubiquiti. The firmware is already written, and I have most everything prepped for the rooftop mount. Before I post about working with the (hidden) Ubiquiti 5.3 SDK, I thought I’d give a quick tour of my system so far.

With Midtown Wifi I had the following goals:

  1. Work more in the C language.
  2. Build a stable and (mostly) embedded captive portal system with a minimal ToS acceptance screen.
  3. Let the surrounding neighborhood use the Internet for free in exchange for helping me build and test the system.
  4. Use the system as a way to introduce neighbors, let them post local interest items (missing pets, crime reports, events, etc).
  5. Provide maps of recently reported crimes via the Harrisburg, PA online Police Blotter.

Over the years I’ve accomplished all of this, to one degree or another. Harrisburg, PA is in the midst of some serious financial problems, so their online police blotter has gone away  – preventing me from easily obtaining local crime information. People are what they are, and as Google+, MySpace, and any other Social Site knows — getting people to truly use your social portal is a trick that requires sheer genius. Getting them to log into it and push a “Free Wifi” button however, is easy.

MidtownWifiLogin
The Midtown Wifi Login Screen (as of Feb 15, 2012)

How it works:

After connecting to one of the open access points, the end user is redirected (courtesy of a patched NoDogSplash) to a captive web portal. The web portal is based off Elgg, a fairly easy to use Social Network Engine written in PHP. I’ve made a few modifications to the base system, adding a more recent JQuery and JQueryUI (so that I can create interactive Dialogs), and writing a few plugins to handle Netflow display, wireless signal strength reports (per user), user speed tests, and to verify that they have a picture set before allowing them to use the Free Wifi.

By nature, people won’t set a profile picture when all they want is Free Wifi. I had to enforce a profile picture (“it doesn’t have to be you, it can be anything non-offensive”) to make the site NOT appear like a barren wasteland.

I eventually limited account creation strictly to the access points as registrations from outside those IPs were mostly just spam.

After a user creates an account and logs in, they are directed to the “Dashboard”, which is a listing of recent posts from any of the users. Most are quick “Hey you!”, but sometimes people post something more substantive. When my rear car window was broken, I used the system as a venting forum.

MidtownWifiDashboard
All the names and 1 dirty word have been removed.

I’ve consolidated most of my customizations relative to the wireless users into a single Elgg plugin I named “TSA Patdown”. Initially TSA Patdown only verified that a user had a profile image set, but now it does quite a bit more. Every 30 seconds I export Received Signal Strength Indication (RSSI) for each client from the  Engenius equipment. I collect this information, as well as information from a Javascript based speedtest widget I wrote to get an idea as to what kind of online experience each user is having.

I represent this information to myself on the following menu, with signal bars that I created using Blender:

MidtownWifiLogins
Signal Strengths, Login times, MAC addresses and more.

I can further delve into information on a per-user basis by simply clicking on a name. I can also pull a full neighborhood report, graphing each clients RSSI values as well as their recent speedtest results.

MidtownWifiSpeedTest
The Javascript Speedtest Widget

Being implemented in Javascript, the speedtest results aren’t the same as you’d see when visiting a Flash based speedtest. The standard web method of performing such a test is to have the end-user download an image file or two (oftentimes two images simultaneously)- and at random intervals determine how much of the image has been downloaded by that timeframe.  With a single image download, it can perform multiple measurements at various intervals and determine available bandwidth much more accurately. Since there’s additional overhead in the underlying TCP/IP layers, it appears most tests also add padding to their calculation to make things more accurate.

Speakeasy
Speakeasy Flash based speedtest

Flash has methods that will allow for such periodic sampling, Javascript however does not. This makes my Javascript implementation an overall average – so a report of 900Kbit/sec can easily represent 1.5Mbit/sec. (My results are much more akin to what Wireshark will report as throughput). I do plan to write a Flash based speedtest in the near future.

WiresharkThroughput
Wireshark measures throughput how I do: Bandwidth / (endtime - starttime)

In this example, the capture in Wireshark measures the throughput as 21.22Mbit/sec, nowhere near the 52.37Mbit/sec rating given by Speakeasy. The recent throughput information is all displayed in the signal screen:

MidtownWifiSignals
Can you hear me now? How fast can I talk?

The Netflow section of my TSA Patdown plugin details the current traffic flow on the network. This screen updates dynamically as users surf the internet. (I’ll reiterate my past posts here: The netflow data is only packet endpoints… basically “this person called this person at this time”, but not the actual content of those conversations). I’ve also added a small port-based protocol disector that colorizes the flows and provides protocol information depending upon the packet you select. If you choose a NetBIOS packet, you’ll get something similar to this:

MidtownWifiNetFlow
Flying by at the speed of light: PACKETS

The system monitors for NetBIOS names as well as DHCP hostnames that appear on Midtown Wifi. All of this information comes together to paint an accurate view of the network.

Clicking a Protocol Name (in this instance NetBIOS) will direct you to a Wikipedia article on the protocol and how it works. Unclassified protocols can be classified and colorized with a simple click. You can also specify the URL to load when the protocol name is clicked.

MidtownWifiProtocolAssignment
Pick a transport, a color, a name, a URL - and you've defined a protocol

The pie charts, RSSI graphs, and throughput graphs are all handled using the PHP JPGraph libraries. In the future, I intend to improve the graphs (there are tendencies for my labels to bleed off-screen or over each other).

The access points share their own ADSL line for bandwidth but maintain individual PPPoE sessions. The wiring in my home needs improvement (the house was built in the 1800’s, the Cat5 running through the house is obviously not that old but does have some serious issues) . Most of the exterior walls appear to be metal, which does hinder re-running the DSL line a bit.

I recently migrated my home network graphing from NetMRG to Cacti, and I’m using Cacti‘s (albeit poor) FTP export function to offload graphs pertaining to MidTown Wifi to the captive portal.

MidtownWifiGraphs
Graphs that have been imported from Cacti.

As you can see in the graphs, the system currently has 175 subscribers. I have deleted the bogus accounts that weren’t created through the APs. The high number of subscribers is largely the result of transient users (my home is on a major bus line, rental homes in the area turn over somewhat frequently, the local college is blocks away,  etc). A couple of users have duplicate accounts having apparently lost their credentials (as is evidenced by a few repeat MAC addresses).

To put the large number into proper perspective:  in the last 7 days there were 157 logins by 18 unique users. Unlike myself, most of the users don’t spend every waking moment on the Internet.

I’ve covered the access points and the firmware images in a number of previous posts, so I’ll let them speak for themselves. In the next few days (hopefully not weeks), I’ll be introducing my first Ubiquiti access point to the system with full details posted then. If you have any thoughts or input, by all means reach me in the comments section.



Customizing the WebConverger Kiosk – The fast way

Recently I was asked to assist a co-worker find a good locked down Kiosk solution for a local coffee shop. The project requirement was small – mostly just a simple browser.

There seems to have been a LOT of Linux based Kiosk projects out there, most of them now deprecated. After a bit of searching, I came across a good one – WebConverger.

Webconverger

Webconverger is a Live Debian build, created and maintained by Kai Hendry using the Debian Live-builder packages. The LiveCD includes the lightweight  Dynamic Window Manager (DWM) , the IceWeasel browser with Webconverger kiosk extension (to lock things down), and… well that’s about it.

Kai has excellent documentation on rolling your own Webconverger LiveCD using his GIT repository, although being pressed for time I opted to go the BraindeadProjects route: Just modify his already released ISO.

To begin modifying it in this manner, first mount the iso using a loopback device:

#mkdir /mnt/webconverger
#mount -o loop webc-7.2.iso /mnt/webconverger

Next mount the SquashFS image, also using a loopback device:

#mkdir /mnt/webconverger-filesystem
#mount -o loop -t squashfs /mnt/webconverger/live/filesystem.squashfs \
/mnt/webconverger-filesystem

As these two mounts are readonly, we need to create editable copies of each.

#mkdir /devel/isolinux
#rsync -av /mnt/webconverger/ /devel/isolinux/

#mkdir /devel/squashfs
#rsync -av /mnt/webconverger-filesystem/ /devel/squashfs/

Now we can go about modifying these two directories. Changing out the ISOLINUX boot splash image is an easy start. The image found under /devel/isolinux/isolinux/splash.png is actually an LSS16 image. To replace it, take or create an image 640×480 in size, and convert it to 14 indexed colors. (In GIMP, these options are under Image/Index)

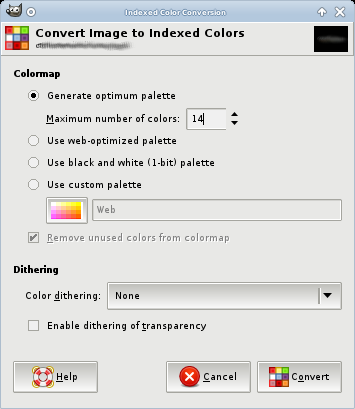

Indexing Colors in Gimp

Once complete, save your image in PPM format.

Next, you’ll need the syslinux package installed on your machine. The syslinux package includes a handy utility to convert PPM to LSS16 (for use as a bootsplash image)

#ppmtolss16 < /tmp/myimage-boot.ppm > splash.png

Since you’re already working on the ISOLINUX side of things, I recommend looking at and revising your boot menu. Once I have an image that I’m happy with, I set the following options to prevent someone from rebooting the Kiosk and tampering with boot parameters:

menu background /isolinux/splash.png
default /isolinux/vesamenu.c32
noescape 1
nocomplete 1
prompt 0
timeout 15
allowoptions 0

While you can nest a number of ISOLINUX boot configs together, I generally keep it to one file that includes the above directives. Dont’ forget to include at least one label for a kernel to boot.

After updating the Boot Splash screen, have a look at /devel/squashfs/home/webc/pb.sh. This script is what causes IceWeasel to start, restart if closed, and sets the desktop background image (amongst other things). This script also downloads a background image from your homepage at boot – which can come in handy if you want to rotate daily ads.  I’ve personally modified my installation to always load the same background image, and fullscreen that image.

The webpage that appears each time IceWeasel starts is passed as kernel boot parameter (homepage). To update the homepage, simply edit the labels in the ISOLINUX  directory.

You will notice that when pressing the home button in the browser however, that you’re actually taken to an about: page that gives details about the current IceWeasel build. To configure this homepage, look at /usr/lib/iceweasel/browserconfig.properties

browser.startup.homepage=www.braindeadprojects.com

I personally like to lock things down a bit more than the standard release. For that reason I also add the following to /etc/iceweasel/pref/local.js

pref(“network.protocol-handler.external.snews”, false);
pref(“network.protocol-handler.external.news”, false);
pref(“network.protocol-handler.external.irc”, false);
pref(“network.protocol-handler.external.mail”, false);
pref(“network.protocol-handler.external.mailto”, false);

Another thing that may prove beneficial is to remove any and all remnants of xterm. As xorg does depend upon xterm, it will have to be forceably removed. This is best done in a chroot environment

#chroot /devel/squashfs/ /bin/bash
#dpkg –force-all -p xterm
#exit

Once you have your modifications complete, you will want to re-squash the squash filesystem. To do this, you’ll need squashfs-tools version 4 (Centos is currently distributing version 3, so do keep that in mind). Squashing using version 3 of the tools will result in a non-bootable kiosk.

#mksquashfs /devel/squashfs/ /tmp/webc.squashfs
#mv /tmp/webc.squashfs /devel/isolinux/live/filesystem.squashfs
#cd /devel/isolinux/
#mkisofs -o /tmp/my-webc.iso -b -r -J -l -cache-inodes -allow-multidot -no-emul-boot \
-boot-load-size 4 -boot-info-table -b  isolinux/isolinux.bin -c isolinux/boot.cat \
/devel/isolinux

Finally, isohybrid your ISO:

isohybrid /tmp/my-webc.iso

I highly recommend testing your ISO image in VirtualBox. Using VirtualBox (or any other virtualization option), saves you from constantly burning an image to  a CD or USB drive. Be mindful that you can skip the isohybrid step and test with VirtualBox, although you won’t be able to install it later using dd.

Once you have an image that you’re happy with, use dd to copy the ISO onto the hard drive of your Kiosk machine. Personally, I copy my ISO to a USB thumbdrive running the Gentoo Based  System Rescue CD, boot into it and then install onto the harddrive:

dd if =/livemnt/boot/kiosk/my-kiosk.iso of=/dev/sda



Of course, one could save time and simply use the WebConverger Customization Service… but why not use this as an opportunity to sharpen one’s skills.

Coming soon to – a walkthrough on how to build and customize a WebConverger ISO from Kai’s GIT repository (as opposed to re-rolling his ISO).

Video Game Creation using Blender, Gimp, and Allegro

I had an enjoyable assignment in a college course on the C language the other day – using the Allegro libraries, write a game of your choosing.

The assignment coincided with my recent discovery of Blender, the 3D mesh animation and design tool. Out of boredom on a recent weekend afternoon, I found Blender in a series of random Google searches… and dedicated the better part of 3 weeks teaching myself the ins and outs. (Surprisingly EVERYONE I know already knew about it, I’m not sure how Blender eluded my radar).

The entire movie Big Buck Bunny was created in Blender

So many people are familar with Blender  in fact, that there are hundreds of YouTube videos (and even  DVDs) covering practically anything you’re looking to do.

My first job was to model an alien – one similar to one of the enemies in a great game from my childhood – Commander Keen. (Side note: I first got the game from one of the many mail-order shareware companies that were popular before the Internet was in practically every home.)

Simple enough, the Alien is basically 3 spheres and 2 cylinders. After 30 or so iterations, I finally had one I liked.

My inspiration (from Commander Keen)
My Tribute to Commander Keen

Learning to paint took about 2 days of watching video after video trying to figure things out. Part of that time was devoted to me hunting down the cause of  a “bug”, which I later learned was a default setting in vertex paint.

This is not a boog.
With the Painting Mask enabled (the 'F' key)

The freenode #blender channel had plenty of knowledgeable users that convinced me that I wasn’t dealing with a bug in my install

Probably the best thing about Blender is that even I (having no real graphical talents), was able to create a decent looking object with a small amount of effort. And  I could then animate it, using armatures and a tutorial by Ira Krakow.

Citronella is Evil: The Action Editor and Timeline

After creating a few other random objects (some of which looked just plain pathetic), I ended up with a small stable of characters – and thankfully an assignment where they could live.

The Allegro programming library is a well documented, easy to use programming library that handles the tough parts of graphics programming – getting objects onto the screen. As with everything – where does one start?

Having two weeks to start and finish a game, I decided another childhood staple would be the perfect game to write – Jetpack.

Just a fun game.

Jetpack had a lot of great things going for it – fun game, re-playable (especially since it had a built in level editor) , and one of my favorite things – a jetpack. Jetpack could easily be thought of as Lode Runner with the ability to fly.

XScavenger is a fun Linux port of Lode Runner

While digging through Allegro’s online manual and chatting with other users on freenode (trying to  figure out how I could write this thing), my storyline inspiration played on my Last.FM stream – “Let’s save Tony Orlando’s House“, a great song by Yo La Tengo about Frankie Valli setting fire to  Tony Orlando’s house after a dispute over backup singers. The song is so subtle (it could easily be played in an elevator) that I had probably heard it a dozen times before actually realizing this soft song was all about a pretty amusing instance of arson.

So, I had a storyline, I had a borrowed game idea- and I had little time.  My first tasks basically drilled down to these items:

How do I make the background of a bitmap image transparent?

Set the transparent portion of the bitmap to #FF00FF (pink), and use masked_blit() or draw_sprite()

Hmm, Allegro didn’t remove all the pink background?

Make sure to disable anti-aliasing, you’re blending #FF00FF with nearby colors

How do I easily generate animations?

Design the models in Blender, use armatures and timelines to create the motion, save them as individual bitmaps (with OSA disabled and with the camera’s background color set to #FF00FF)

What’s the shortcut to add bitmaps to a datfile? Grabber would take forever!

Use the command line interface to datfiles – “dat”. Trust me on this one, I could archive 300 images in a few seconds, doing it by hand would be masochistic, taking hours.

How do I prevent choppiness in animations and movement?

There’s system bitmaps, video bitmaps, and memory bitmaps. Look into them, and the example code that comes with Allegro (especially exupdate) for ideas and examples.

How can I fade in/out?

One method is to place a semi-transparent black rectangle over the screen. Look at set_trans_blender(), drawing_mode(), and rectfill().

With the answers to those questions in tow, I had a decent demo ready in under two weeks; one that supported smooth screen scrolling, had some limited game-physics, and an even more limited level editor.

In the end, I pieced together level backgrounds using GIMP and a few photos from IStockPhoto.com. The game physics could be better, I’ll attribute their current state to my inexperience and the pending deadline. In the end – I think the project turned out fairly well.

GIMP and the first level background

Part of the Title Sequence to the game. Tony Orlando image used without his consent.

I took the following screen capture of the game using Taksi, an open-source, and free capture program in the same vein as Fraps (although Fraps is limited to 30 seconds of capture in the trial version). The screen-capture doesn’t have sound (the game does) and the actual game runs much smoother than the screen-capture..

So basically, you’re a mosquito with no wings (thank you Mr. Orlando) fighting to survive, collecting blood IV’s and gascans to fuel your jetpack. Now, I’ve got another project to dedicate free time to – all made possible with Blender, Allegro, GIMP,  and a little programming.
